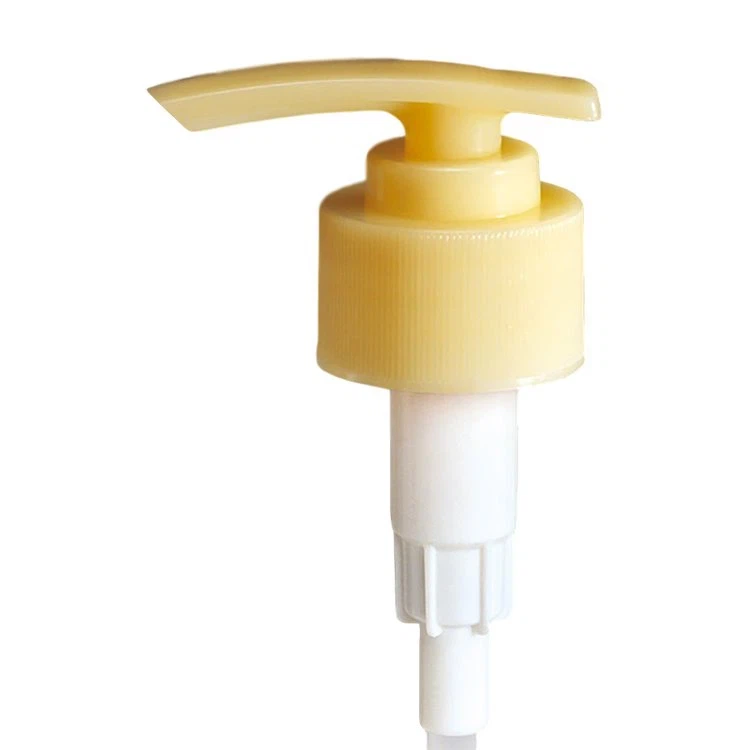

How the lotion pump works?

Most of the accessories of the pump head are mainly made of plastic materials such as PE, PP, and LDPE, and are molded by injection molding. Among them, glass beads, springs, gaskets and other accessories are generally purchased outside. The main components of the pump head can be applied to electroplating, anodized aluminum cover, spraying, injection molding and other methods. Both the surface of the pump head and the surface of the braces can be printed with graphics and text, and can be processed by printing processes such as bronzing/silver printing, silk screen printing, and pad printing.

1. Product classification

Conventional diameter: Ф18, Ф20, Ф22, Ф24, Ф28, Ф33, Ф38, etc.

According to the lock head: guide block lock head, thread lock head, clip lock head, no lock head

According to the structure: spring external pump, plastic spring, anti-water emulsion pump, high viscosity material pump

According to the pumping method: vacuum bottle and straw type

According to the pump output: 0.15/ 0.2cc, 0.5/ 0.7cc, 1.0/2.0cc, 3.5cc, 5.0cc, 10cc and above.

2. Working principle

Manually press down the pressure handle, the volume in the spring chamber decreases, the pressure rises, the liquid enters the nozzle chamber through the hole of the valve core, and then sprays out the liquid through the nozzle, at this time release the pressure handle, the pressure in the spring chamber The volume increases, forming a negative pressure, the ball opens under the negative pressure, the liquid in the bottle enters the spring chamber, at this time there is a certain amount of liquid in the valve body, when the handle is pressed again, the liquid stored in the valve body will be released Rush upwards and spray out through the nozzle;

3. Performance indicators

The main performance indicators of the pump: air pressure times, pump output, downforce, pressure head opening torque, rebound speed, water intake indicators, etc.

4. The difference between inner spring and outer spring

The external spring, which does not touch the contents, will not cause the contents to be polluted due to the rust of the spring.

Pump heads are widely used in the cosmetics industry, including skin care, body wash, and perfume, such as shampoo, shower gel, body lotion, essence, anti-sun lotion, BB cream, liquid foundation, facial cleanser, and hand sanitizer And other product categories have applications.
